With bare plate lamp
Product Description：
model：OCM-L28140
light source：2835
power：3W-10W
control：Monochromatic ligh
size：5mm*H2.5mm
Service Hotline：13428673246
- Specifications
- Product Description
Detailed introduction

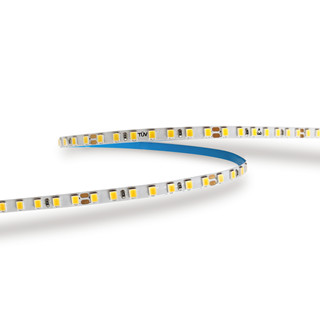

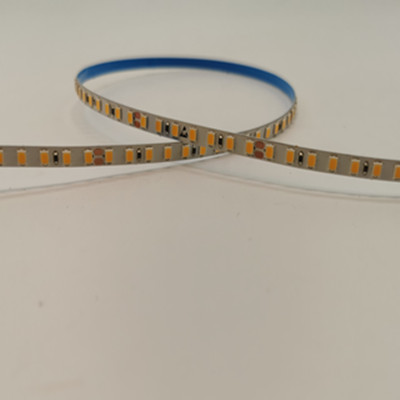

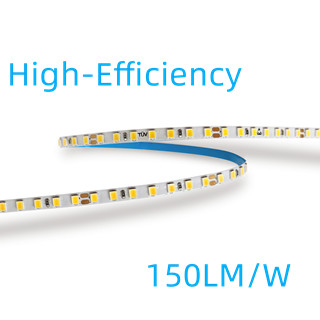

OCM-L28140 20 segment lamp 2835
Product parameters of lamp bar:
Product name: soft light belt
Operating voltage: 12V / 24V
Operating current: 0.06A/ section 0.6A/ meter
Number of lamp beads: 140 lamp/meter
Bead type: patch 2835
Protection grade: IP20
Light bead color: 2000K-6500K
Circuit board type: double FPCB (flexible flexible board)
Maximum power: 10W
FPCB color: white/black
Length of each roll: 5 meters per roll
Packing: Aluminum foil bag anti-static packaging
Weight of each plate: 240g (glue drop) 100g (bare plate) 200g (sleeve)
Waterproof level: IP20/IP65/IP67/IP68 optional
Operating temperature: -40℃ ~ 60℃
Storage temperature: -50℃ ~ 80℃
Light source life: 50000 hours
Terminal head: 2PIN / 3PIN / 4PIN
